BlackView MP100 AMD R7 5825U/16GB/512GB/1xHDMI+1xDP/RJ45/BT/WiFI/W11P Black |
||
|

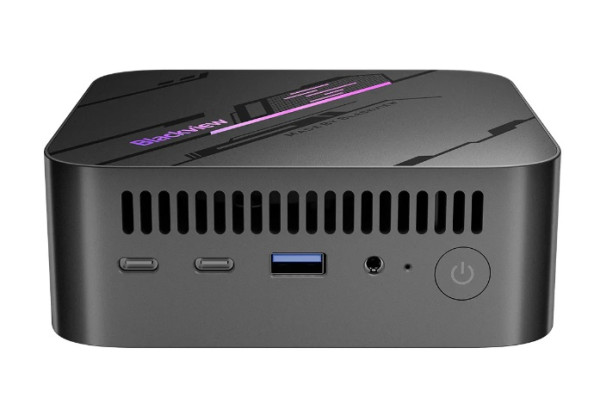

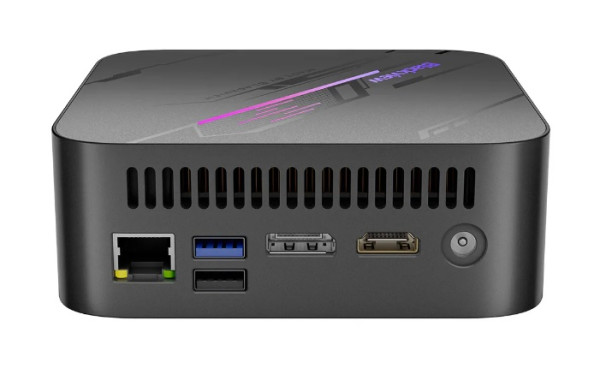

Product Appearance |
|
|
|
Type |
Spec. |
Standard Configuration |
|
Product |
Product Type |
MINI PC |
|
|
Dimension |
127*127*45mm |
|
|
Case Material |
Plastic+Metals |
|
System Hardware Configuration |
|
|
|
Type |
Spec. |
Description |
|
CPU |
Model |
AMD Ryzen™ 7 5700U |
|
|
Lithography |
TSMC 7nm FinFET |
|
|
Total Cores |
8 Core ，16 Threads |
|
|
Cache |
L2 cache 4MB，L3 cache 8MB |
|
|
Speed |
1.8GHz |
|
|
Max. Turbo Speed |
4.3 GHz |
|
|
Power Consumption |
25W |
|
GPU |
Model |
AMD Radeon™ Graphics |
|
|
Cores |
8 Core |
|
|
Speed |
1900MHz |
|
|
Max Resolution |
Max Resolution (HDMI) 3840x2160@60Hz，Max Resolution (DP) 3840x2160@144Hz，Max Resolution (Type C) 3840x2160@60Hz |
|
Memory |
Model |
2*SODIMM LPDDR4 （Up to 64GB） |
|
|
Speed |
3200MHz |
|
|
Capacity |
DDR4 Flush-mount，single channel 16GB / Dual channel 32GB |
|
Storage |
SSD |
512GB&1TB（M.2 2280 PCIE3.0 SSD） |
|
|
Interface type |
1* M.2 2280 NVME +1*NVME/SATA3.0，Up to 2TB |
|
|
2.5'' SSD |
Optional, 2.5 inch 7mm SATA port SSD/HDD, Max 2TB |
|
RTC |
BIOS |
Real-time Clock, Time Boot |
|
Auto Power On |
BIOS |
Support auto power on after electrified |
|
Diskless Network |
BIOS |
Support uefi/Legacy Diskless Switch On |
|
TPM |
CPU integratesTPM |
Support TPM 2.0 |
|
multi-screen display |
Video Output |
In the system, HDMI1+DP two-screen display and Type-C three-screen display are supported（Any Type-C port, but does not support dual Type-C simultaneous display） |
|
Heat-dissipating method |
Heat-dissipating method |
Copper tube + copper fin + fan |
|
FAN |
FAN |
5V~0.5A/2.5W /Rated Speed2250rpm |
|
LED |
State |
Button light: blue light running, red light sleeping, atmosphere light: running breathing color RGB (The ambient light is not adjustable and cannot be turned off) |
|
Internet Connection |
|
|
|
Type |
Spec. |
Description |
|
WIFI |
Model |
M.2 E_Key |
|
|
Protocol |
IEEE 802.11 a, b/g, n, ac,ax |
|
Bluetooth |
Model |
M.2 E_Key |
|
|
Protocol |
Support Bluetooth 5.2 |
|
3G |
Built-in |
No |
|
4G |
Built-in |
No |
|
Ethernet |
LAN1 |
10M/100M/1000M Self-adaption |
|
I/O |
|
|
|
Type |
Spec. |
Description |
|
USB |
USB2.0 |
USB2.0 Type-A*1 480Mbps |
|
USB |
USB3.0 |
USB3.2 Gen2 Type-A*2 10Gbps |
|
TF |
Expansion Memory |
No |
|
HDMI |
AV Output |
HDMI 2.0b（Max 4K 60HZ)*1 |
|
DP |
AV Output |
DP1.4（Max 4K 144HZ)*1 |
|
VGA |
Video Output |
No |
|
RJ45 |
Gigabyte Ethernet |
RJ45 1000Mbps *1 Self-adaption |
|
Type C |
Data Transmission |
Type_C *2(full-featured)10Gbps/Max 4K 60HZ |
|
POWER |
Power Button |
x1 |
|
DC IN |
Power Supply Input |
5.5/2.1mm DC Jack x1 |
|
Audio-in/out |
Audio-in/out |
3.5mm Phone Jack x1 （Two-in-one interface） |
|
Antenna1 |
FPC Antenna |
WiFi 2.4+5G+BT x1 |
|
Antenna2 |
FPC Antenna |
WIFI 6.0 |
|
SIM |
Micro SIM |
No Supporting |
|
Software Configuration |
|
|
|
Type |
Spec. |
Description |
|
OS |
Version |
Win11 pro |
|
Environment |
|
|
|
Type |
Spec. |
Description |
|
Environment |
Working Temperature |
0~40℃ |
|
|
Memory Temperature |
-20~60℃ |
|
|
Humidity |
90% @ 40 °C (No Condensation) |
