BlackView MP60 Intel N95/16GB/512GB/2xHDMI/2xUSB 3.0/1xRJ45/BT/WiFI/W11P Black |
||
|

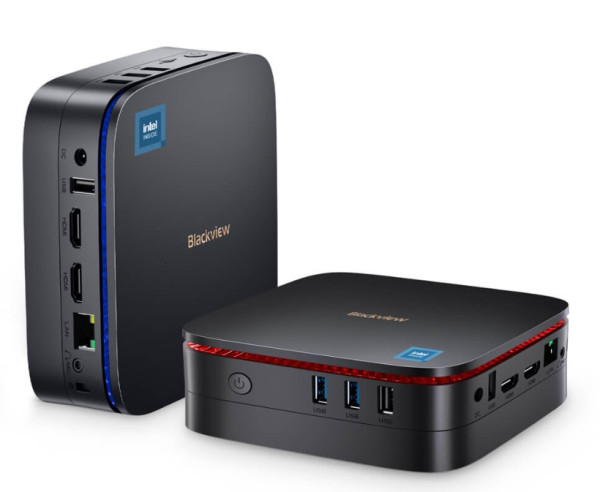

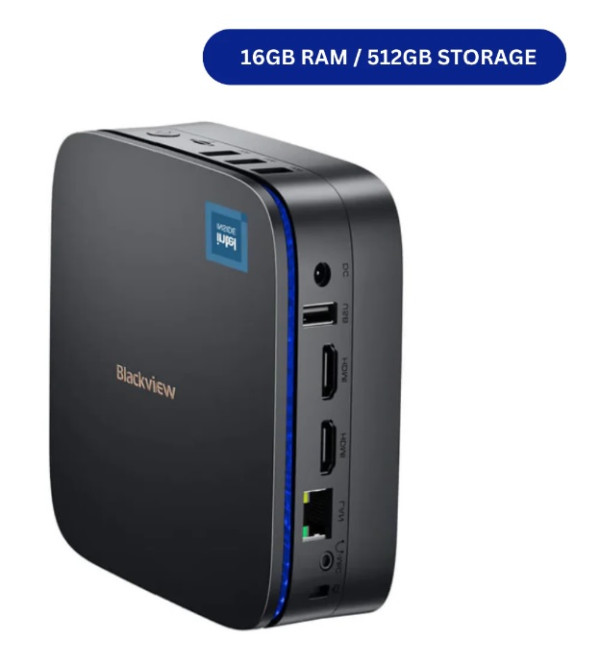

Product Appearance |
|
|
|
Type |
Spec. |
Standard Configuration |
|
Product |
Product Type |
MINI PC, Ad Terminal Box |
|
|
Dimension |
128mm*128mm*52mm |
|
|
Case Material |
Plastic |
|
|
Weight |
Net Weight 390g，Gross Weight 870g |
|
System Hardware Configuration |
|
|
|
Type |
Spec. |
Description |
|
CPU |
Model |
Intel Jasper Lake N5095/N95 |
|
|
Speed |
2.0 GHz |
|
|
Max. Turbo Speed |
2.9 GHz |
|
|
Power Consumption |
10W |
|
Memory |
Model |
LPDDR4 |
|
|
Capacity |
16GB on Board |
|
Storage |
SSD |
512GB（M.2 2280 NGFF SSD |
|
|
2.5'' SSD |
2.5 SATA Port SSD/HDD, Max 2TB |
|
TPM |
CPU integratesTPM |
Support TPM 2.0 |
|
Double Display |
Video Output |
HDMI1 + HDMI2 Double Display |
|
LED |
State |
Blue light- Swith on Red light- Machine dormancy |
|
Internet Connection |
|
|
|
Type |
Spec. |
Description |
|
WIFI |
Model |
intel 7265/ 3165/ RTL8821CE On Board |
|
|
Protocol |
IEEE 802.11 a, b/g, n, ac |
|
Bluetooth |
Model |
intel 7265/ 3165/ RTL8821CE On Board |
|
|
Protocol |
Support Bluetooth 4.2 |
|
3G |
Built-in |
No |
|
4G |
Built-in |
No |
|
Ethernet |
LAN1 |
10M/100M/1000M Self-adaption |
|
I/O |
|
|
|
Type |
Spec. |
Description |
|
USB |
USB2.0 |
USB2.0 Type-A*2 |
|
USB |
USB3.0 |
USB3.0 Type-A*2 |
|
TF |
Expansion Memory |
No |
|
HDMI |
AV Output |
HDMI 1.4b Type A x2 |
|
VGA |
Video Output |
No |
|
RJ45 |
Gigabyte Ethernet |
RJ45 x1 |
|
Uart |
Data Transmission |
No |
|
POWER |
Power Button |
x1 |
|
DC IN |
Power Supply Input |
5.5/2.1mm DC Jack x1 |
|
Audio-in/out |
Audio-in/out |
3.5mm Phone Jack x1 （Two-in-one interface） |
|
Antenna1 |
FPC Antenna |
WiFi 2.4+BT x1 |
|
Antenna2 |
FPC Antenna |
WIFI 5.0 |
|
SIM |
Micro SIM |
No Supporting |
|
Software Configuration |
|
|
|
Type |
Spec. |
Description |
|
OS |
Version |
Win11 pro |
|
Environment |
|
|
|
Type |
Spec. |
Description |
|
Environment |
Working Temperature |
0~40℃ |
|
|
Memory Temperature |
-20~60℃ |
|
|
Humidity |
90% @ 40 °C (No Condensation) |
